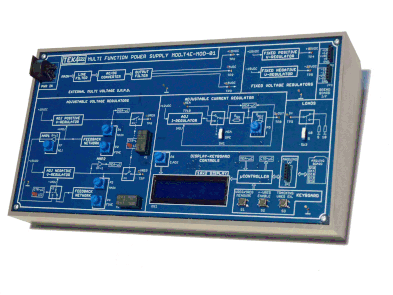

MULTI FUNCTION POWER SUPPLY mod. T4E-MOD-01

Download
DEPLIANT
T4E-MOD-01_R.0_1708_EN.pdf
Documento Adobe Acrobat 535.2 KB

The module Multifunction Power Supply mod.T4E-MOD-01 is a complete power supply that can be used:

  • to study the voltage regulators and current regulators (battery charger), fixed and adjustable, positive and negative
  • as a power supply of laboratory to feed experimental circuits.

The display, the keyboard and the microcontroller allow voltage and current measurements, and several modes of use, as a professional power supply.

There are the Arduino interface and Breadboard interface to connect it to the outside.


Module and Arduno UNO board
Module and Arduno UNO board


DDS FUNCTION GENERATOR mod. T4E-MOD-10

Download
DEPLIANT
T4E-MOD-10_R.0_1703_EN.pdf
Documento Adobe Acrobat 529.3 KB



The module DDS Function Generator mod.T4E-MOD-10 is a complete waveform generator that can be used:

  • to study the DDS technology (Direct Digital Synthesis) that is used to digitally synthesize a periodic waveform
  • as a function generator of laboratory to provide the necessary signals to the experimental circuits. 3 useful accessories are included.

The display, the keyboard and the microcontroller allow the setting and display the desired frequency and the management of different operating modes, such as in professional generators.

The Arduino interface allows easy connection to an external board Arduino UNO.


Simple LEDs game

Setting: Freq= 1 MHz to 0.1 Hz, Zout= 50 Ohm

Outputs directly connected to the LEDs w/o series resistance.

SINE out:        white led

PULSE out:    green led (40% duty-cycle)

SQUARE out: red led (50% duty-cycle)

a) 0.1 Hz - Sine - Pulse - Square outputs connected to LEDs

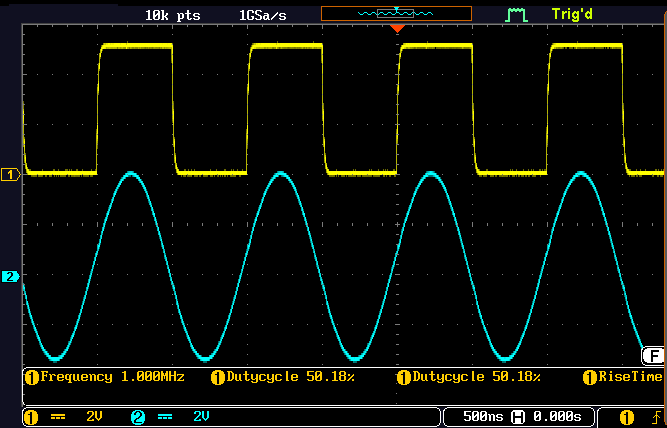

b) 1MHz - Square & Sine outputs

c) 1MHz -Direct & Inverted Pulse outputs
