POWER SUPPLY & FUNCTION GENERATOR mod. T4E-BOX-04

Download
DEPLIANT
T4E-BOX-04_R.1_1904_EN.pdf
Documento Adobe Acrobat 311.6 KB



The Power Supply & Function Generator unit mod.T4E-BOX-04 is a 3-in-1 instrument because it has the function of three instruments in a single device.

It has been designed to be used in direct current (DC) and alternating current (AC) experiments where it is necessary to use AC/DC power supplies and signals or waveforms that cannot be supplied by typical signal generators of the laboratories, due to their insufficient current or power supply capacity.

Its main features are:

  • DC power supply: 0 to 12Vdc / 3A
  • AC power supply: 0 to 16Vpp / 2A /8W
  • Square waveform generator: 0-5V (TTL)
  • Android App myGEN for frequency setting, from 0.1Hz to 200kHz.



After switching on, the unit is ready to work with the DC power supply,  the AC power supply and the square waveform, with 50Hz frequency.

Using the App you can change the frequency of 50Hz in the range from 0.1Hz to 200kHz.



It is the ideal tool to be used with the Basic Electricity Board mod.T4E-BCB-01



microAMP POWER AMPLIFIER mod. T4E-BOX-03

Download
DEPLIANT
T4E-BOX-03-R.0_1803_EN.pdf
Documento Adobe Acrobat 327.9 KB



The microAMP power amplifier unit mod.T4E-BOX-03 has been designed to be used in experiments where you want to use signals and waveforms that can not be provided by the typical signal or waveform generators present in the laboratories, due to their insufficient capacity to supply current or power.

Its main features are:

  • High impedance input compatible with signals provided by any signal generator or waveform
  • Output with very low impedance to drive any kind of resistive, inductive or capacitive load
  • High output current (> 2.5A)
  • Voltage gain (Output / Input) equal to 10 (20dB) to allow the use of signal generators or waveform with limited voltage range provided

  • Accept any kind of signal or waveform with the presence of continuous or non-continuous component
  • AC / DC selector which allows to output a signal without a DC component (eg + 10V/-10V, AC mode) or with a DC component (eg 0V-10V, DC mode). In particular, in DC mode, by supplying a constant voltage (DC, positive or negative), the unit behaves like a variable DC power supply and can supply a positive or negative voltage on the load.
  • Protection circuits for incorrect supply voltage (inverted polarity of the input connector), for overcurrent, short circuit to ground and overtemperature
  •  The amplitude of the input signal can saturate the output stage without problems for the unit

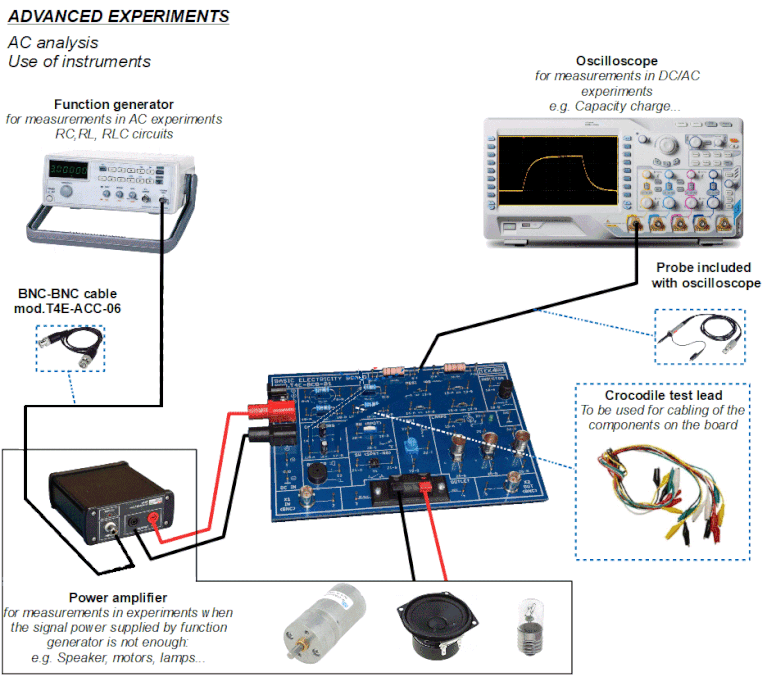

Example of use w/ Function generator, board for basic electricity experiments and oscilloscope



Esemple of measurements

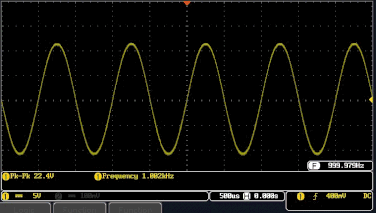

Input: SINE 1kHz

Output: +22,4Vpp (Load=4 Ohm, AC)

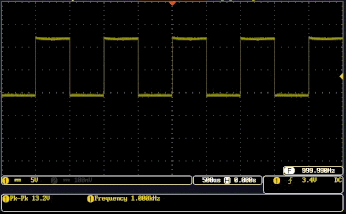

Input: SQUARE 1kHz

Output: 13,2V (Load=4 Ohm, DC)
