BASIC ELECTRICITY BOARD mod. T4E-BCB-01

Download
DEPLIANT
T4E-BCB-01-R.0_1803_EN.pdf
Documento Adobe Acrobat 564.5 KB



The Basic Electricity Board mod.T4E-BCB-01 has been designed to allow the experimentation of simple electrical circuits that will be realized using the included crocodile cables.

You can:

- study the electrical and functional characteristics

- understand its functional limits and

- analyze the effects of their presence in the circuits

of all the electrical and mechanical components on the board.



It can be used by students of any level of educational institutions, to support frontal lessons.

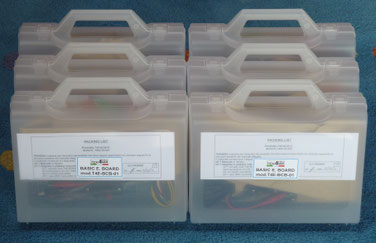

A practical transparent case is included and contains the board, its accessories and the Packing List.

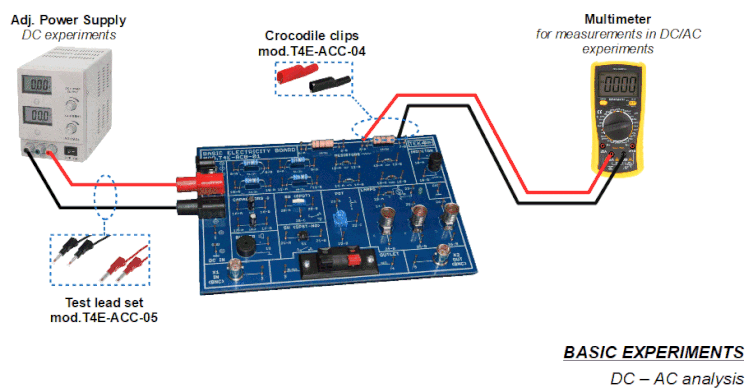

For those of the lower secondary school (science and technology), it will be possible to perform simple electricity experiments and learn about the components using the power supply and the multimeter.

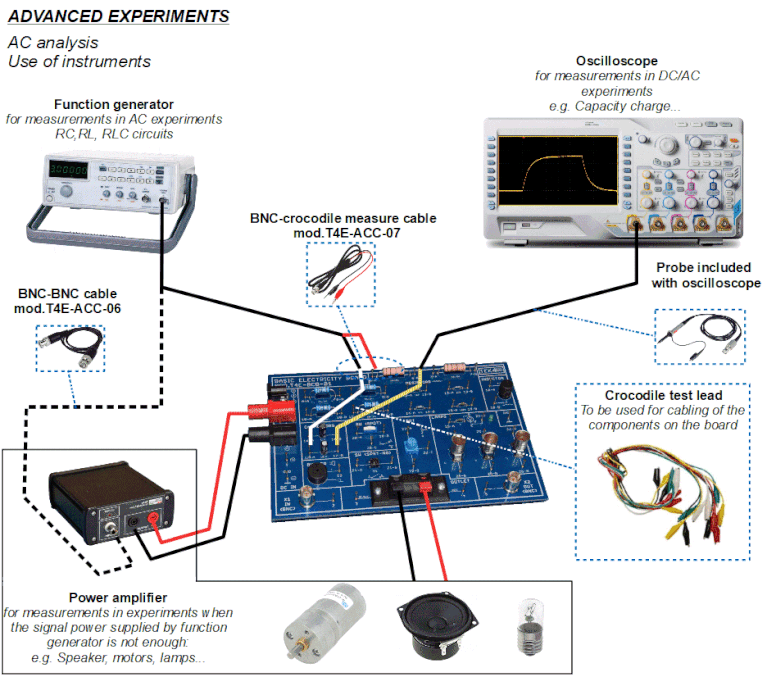

For those of upper secondary school, depending on whether high schools or technical institutes, it will be possible to perform further and more advanced experiments:

- in direct current using an adjustable power supply

- in alternating current using a function generator

- in alternating current to observe the variables that change over time, learning to use an oscilloscope

- of acoustic physics (sound): for measurements of the sound intensity emitted by the included buzzer, learning to use a sound level meter

- of optical physics: experimentally verifying the effects that have the amplitude and the frequency of a signal that feeds a light bulb on the perception of the human eye, using a function generator and a power amplifier and learning to use a luxmeter

- to study the technical characteristics of components not included in the card: motors, loudspeakers, ..

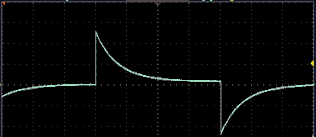

Oscilloscope example of use


RC circuit

RL circuit



Optional accessories

MULTIMETER mod.T4E-INS-01

for direct measurements on components and in DC /AC circuits

POWER SUPPLY mod.T4E-INS-02

It powers the board and allows DC experiments.

Adj .0-18V/0-3A

FUNCTION GENERATOR

mod.T4E-INS-03

It allows AC experiments


POWER SUPPLY & FUNCTION GENERATOR

mod.T4E-BOX-04

3-in-1 instrument: DC power supply, AC power supply and function generator.

It allows AC and DC experiments

POWER AMPLIFIER mod.T4E-BOX-02

It allows experiments wherever you need the power that a function generator can not provide: with light bulbs, motors, speakers ...

DC/AC coupling selector allows DC filtering or not.


SOUND LEVEL METER mod.T4E-INS-04

It allows experiments of acoustics w/ buzzer

LUX LEVEL METER mod.T4E-INS-05

It allows experiments of optics w/ leds and lamps
